IP68 Industrial washable medical laser trackball pointing device with USB

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-B107F-38-OTB

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : Metal Stainless steel

Colour : Brushed stainless steel

Trackball : OTB

Key Travel : 2 mm long stroke

Trackball diameter : 19mm, 25mm, 38mm 50mm also available

Contact Now

38mm Industrial washable medical laser trackball pointing device with USB

Description:

IP65 dynamic rated vandal proof stainless steel optical trackball with IP65 dynamic sealed stainless mouse buttons and IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, optical trackball module protected and shielded by stainless steel housing, 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution.


MAIN FEATURE:

  • IP68 dynamic waterproof (from the top)
  • Solid State Optical Navigation Technology
  • Fixed Ball Versions
  • Maintenance free with no moving parts
  • Intrinsically and ESD safe operation
  • Quadrature, PS/2 and USB outputs
  • Anti-vandal options
  • Output cables and switch input cables (option)
  • Decontamination Friendly

TECHNICAL SPECIFICATION:

Mechanical Key 3 keys, sealed stainless steel buttons
Key top style sealed round stainless steel buttons with tactile feeling
Front Plate Quality brushed SUS304 stainless steel
Key Travel 0.45mm
Ball Epoxy Resin with special surface treatment, 38mm/1.50'
Key switch lifespan more than 10 Mio actuations
Track ball lifespan > 5 Mio revolutions
Back Metal Cover Rear side integrated electronics protected by a metal cover
Tracking Force 20 grams Nominal Continuous Friction / Scraper Ring
Dimension

Dimensions with 38mm track ball,

Front plate (W x H): 107.0mm x 120.0mm
Interface PS2, USB are available, Y type cable with ports of PS2 and USB
Electrical Power supply 5V DC+ 10%, keyboard interface
Protection level IP68 (front panel), NEMA3
EMC Standard EN55022(B)
Power consuming ≤1.00W(dynamic)
≤0.2W(static)
Contact Material sealed stainless steel buttons
Environmental Operating temperature -20ºC~+ 60º C
Storage temperature - 30ºC~+ 70ºC
Operating RH 30～90%
Atmospheric pressure 60～106Kpa.
Reliable Certificates RoHS compliant, CE and FCC certified. ESD
MTBF >50000H
MTTR < 30min
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown box, suitable brown boxes to a standard export carton

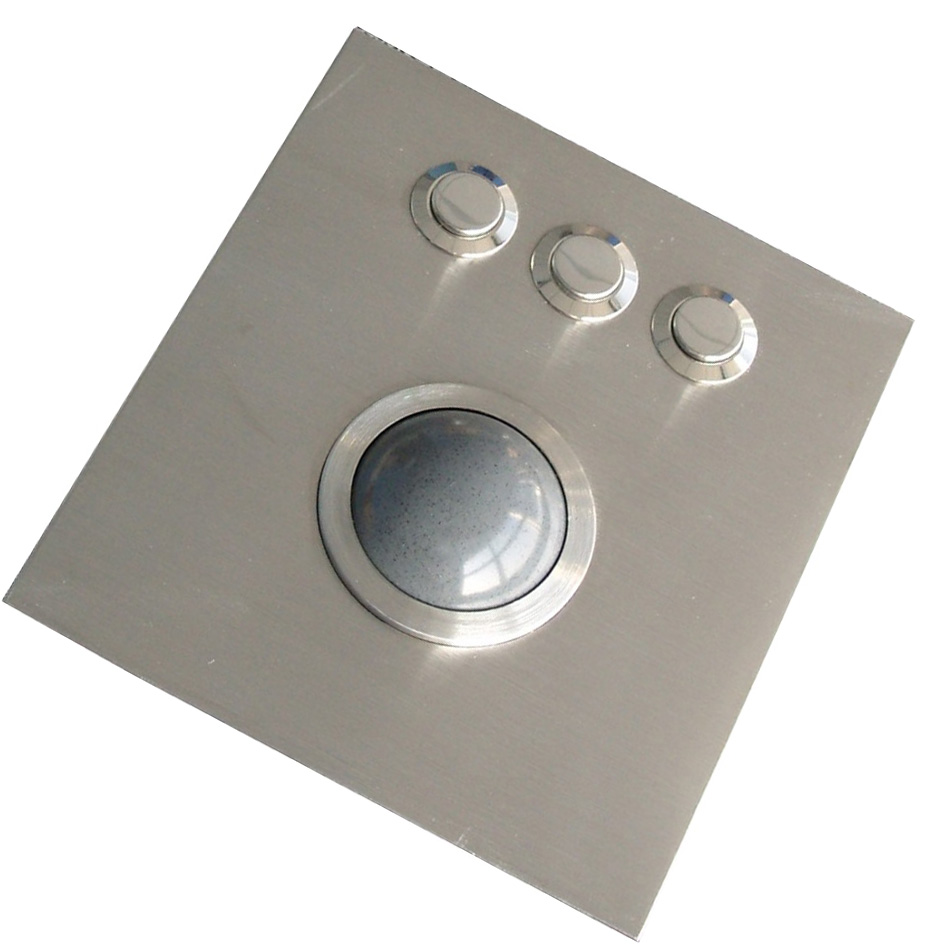

Actual Photos:

IP68 Industrial washable medical laser trackball pointing device with USB

IP68 Industrial washable medical laser trackball pointing device with USB

Mechnical Drawing:

IP68 Industrial washable medical laser trackball pointing device with USB

Our Office:

IP68 Industrial washable medical laser trackball pointing device with USB

IP68 Industrial washable medical laser trackball pointing device with USB
